Description

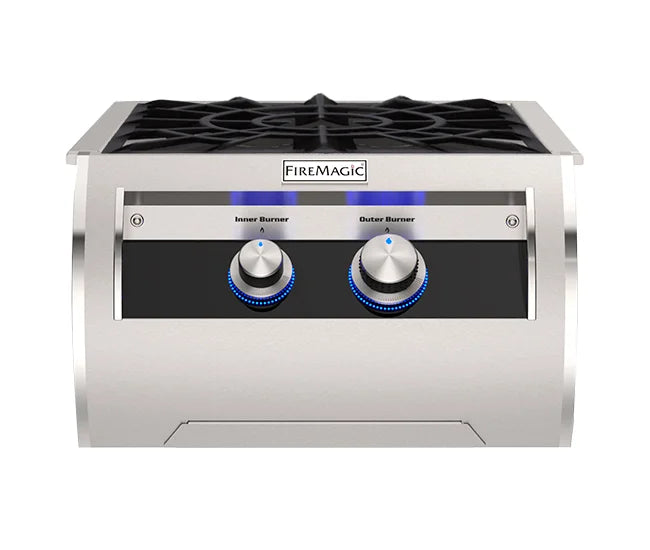

The Fire Magic Echelon Diamond Power Burner delivers exceptional versatility and commanding heat output to transform any outdoor kitchen into a professional-grade culinary workspace. Engineered with precision craftsmanship and premium materials, this dual-zone power burner seamlessly integrates intense cooking capabilities with sophisticated design elements, making it the perfect companion for outdoor chefs seeking restaurant-quality performance.
Unmatched Dual-Zone Power Performance
Experience ultimate cooking control with innovative dual-burner configuration featuring independent heat zones optimized for diverse culinary applications. The precision inner burner delivers variable output from 3,000 to 15,000 BTUs for delicate simmering and gentle warming, while the robust outer burner unleashes up to 45,000 BTUs of concentrated power for high-heat techniques. This 60,000 BTU total output capability handles everything from gentle sauce reductions to intense wok cooking and turkey frying with professional precision.
Experience ultimate cooking control with innovative dual-burner configuration featuring independent heat zones optimized for diverse culinary applications. The precision inner burner delivers variable output from 3,000 to 15,000 BTUs for delicate simmering and gentle warming, while the robust outer burner unleashes up to 45,000 BTUs of concentrated power for high-heat techniques. This 60,000 BTU total output capability handles everything from gentle sauce reductions to intense wok cooking and turkey frying with professional precision.
Advanced Heat Concentration Technology
The proprietary 10-inch diameter Heat Concentrating Flame Collimator revolutionizes outdoor cooking by focusing intense heat energy into the center 25% of the cooking surface, delivering up to 190 BTU per square inch. This innovative design creates optimal conditions for specialized cooking techniques requiring extreme heat concentration, including authentic wok cooking, rapid boiling, and professional-grade searing that rivals commercial kitchen equipment.
The proprietary 10-inch diameter Heat Concentrating Flame Collimator revolutionizes outdoor cooking by focusing intense heat energy into the center 25% of the cooking surface, delivering up to 190 BTU per square inch. This innovative design creates optimal conditions for specialized cooking techniques requiring extreme heat concentration, including authentic wok cooking, rapid boiling, and professional-grade searing that rivals commercial kitchen equipment.
Premium Design and Seamless Integration
Crafted from high-quality stainless steel construction throughout, this power burner combines durability with sophisticated aesthetics featuring illuminated control knobs and modern black glass accent panel. The integrated design seamlessly connects to Fire Magic Echelon Diamond Grill systems or operates independently with appropriate transformer connections. Built-in configuration with precise cutout specifications ensures professional installation, while the included protective lid safeguards the unit when not in use.
Crafted from high-quality stainless steel construction throughout, this power burner combines durability with sophisticated aesthetics featuring illuminated control knobs and modern black glass accent panel. The integrated design seamlessly connects to Fire Magic Echelon Diamond Grill systems or operates independently with appropriate transformer connections. Built-in configuration with precise cutout specifications ensures professional installation, while the included protective lid safeguards the unit when not in use.
Features
- Premium stainless steel construction throughout
- Dual-zone burner system with independent controls
- Inner burner: 3,000-15,000 BTU variable output
- Outer burner: up to 45,000 BTU maximum power
- 60,000 BTU total cooking capacity
- Heat Concentrating Flame Collimator technology
- 10-inch diameter heat focusing system
- Heat focused in center 25% of unit
- Up to 190 BTU per square inch heat concentration
- Back-lit control knobs for enhanced visibility
- Modern black glass accent panel
- Built-in configuration design

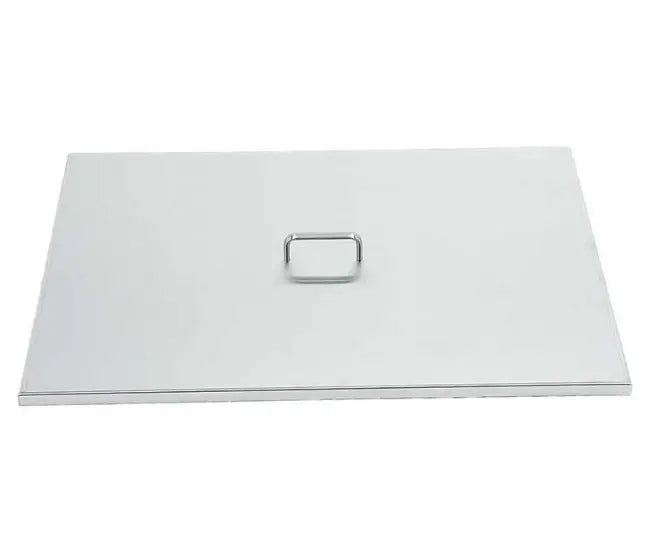

- Protective stainless steel lid included
- Integrated ignition system
- Compatible with Fire Magic Echelon Diamond Grills
- Propane and natural gas compatible
- Professional-grade wok cooking capability
- Turkey frying and high-heat applications
- Precise temperature control range
- Weather-resistant construction
- Made in the USA quality
- 110V power source required for operation
Specifications
Specifications, data and other product details are listed below for this Fire Magic item.
ManufacturerFire Magic
CollectionEchelon Diamond
Burner TypePower Burner
ConfigurationBuilt-In
Fuel TypeNatural Gas / Propane
Made in USAYes
Number of Burners2 Burners
Total BTUs60,000
Inner Burner BTUs3,000-15,000
Outer Burner BTUs45,000
Exterior MaterialStainless Steel
Primary ColorStainless Steel
Heat Concentrator10" Diameter
Maximum Heat Density190 BTU/sq. in.
Control KnobsBack-lit
Power Requirement110V
Extra FeaturesN/A
Commercial GradeNo
Dimensions
All dimensions below are measured in inches and represent the product when fully assembled.
Width20.75"
Height12"
Depth23.75"
Weight62 lbs
Cutout Width19"
Cutout Height11.5"
Cutout Depth18.75"
